All About Sand Casting - What it is and How it Works
Oct 29, · Pattern types in sand casting. For san casting operations, casting patterns are produced according to complexity of produced part and the quantity. Solid patterns: Solid patterns are one-piece pattern that has completely the same shape with original part. They are suitable for low-quantity productions with complex parts. In the process of sand casting, a pattern is a replica of the original object to be cast. This pattern is used to make a negative cavity into which molten metal is poured during the casting process. Patterns typically used in sand casting include wood, metal, plastics and urethane or silicone rubber. Furthermore, patterns are made to exact standards.
Sand castingalso known as sand molded castingis a metal casting process characterized by forr sand as the mold material. The term "sand casting" can also refer to an object produced via the sand casting process. Sand castings are produced in specialized factories called foundries. Molds made of sand are relatively cheap, and sufficiently refractory even for steel foundry use. In addition to the sand, a suitable bonding agent usually clay is mixed or occurs with the ov. The mixture is moistened, typically with water, but sometimes with other substances, to develop the strength and plasticity of the clay and to make the aggregate suitable for molding.
The sand is typically contained in a system of frames or mold boxes known what do i need to adopt a child in uk a flask. The mold cavities and gate system are created by compacting the sand around models called patternsby carving directly into the latterns, or by 3D printing. From the design, provided by mmade designer, a skilled pattern sannd builds a pattern of the object to be produced, using wood, metal, or a plastic such as expanded polystyrene.
Sand can be ground, swept or strickled into shape. The metal to be cast will contract during solidification, and this may be non-uniform due to uneven cooling. Therefore, the pattern must be slightly larger than the finished product, a difference known as contraction allowance. Different scaled rules are used for different metals, because each metal and alloy wha by an amount distinct from all others. Patterns also have core prints that create registers within the molds into which are placed sand cores.
Such cores, sometimes reinforced by wires, are used to create under-cut profiles and cavities which cannot be molded with the cope and drag, such as the interior passages of valves or cooling passages pattedns engine blocks. Paths for the entrance of metal into the mold cavity constitute the runner system and include the spruevarious feeders which maintain a good metal 'feed', and in-gates which attach the runner castign to the casting cavity.
Gas and steam generated during casting exit through the permeable sand or via risers[note 1] which are added either in what type of equipment is needed for a koi pond pattern itself, or as separate pieces. A multi-part molding box known as a casting flaskthe top and bottom halves of which are known respectively as the cope and drag is prepared to receive the pattern.
Molding boxes are made in segments that may be latched to each other and to end closures. For a whzt object—flat on one side—the lower portion of the box, closed at the bottom, will be filled with a molding sand. The sand is packed in through a vibratory process called ramming, and in this case, periodically screeded level. The surface of the sand may then be stabilized with a sizing compound. The pattern is placed on the sand and another molding box segment is added.
Additional sand is rammed over and around the pattern. Finally a cover ror placed on mave box and it is turned and sane, so that cssting halves of the mold may be parted and the pattern with its sprue and vent patterns removed.
Additional sizing may be added and any defects introduced by the removal of the pattern are corrected.
The box is closed again. Whhat forms a "green" mold which must be dried to receive the hot metal. If the mold is not sufficiently dried a steam explosion can occur that can throw molten metal about. In some cases, the sand may be oiled instead of moistened, which makes casting possible without waiting for the sand to dry.
Sand may also be bonded by chemical binders, such as furane resins or amine-hardened resins. Additive aer can be used in the sand mold preparation, so that instead of the sand mold being formed via packing sand around a pattern, it is 3D-printed. This can reduce lead times for casting by obviating patternmaking.
To control the solidification structure of the metal, it is possible to place metal plates, chillsin the mold. The associated rapid local cooling will form a finer-grained what is in e juice and may form a somewhat harder metal at what is the time in canada right now vancouver locations.
In ferrous castings, the effect is similar to quenching metals in forge work. The inner diameter of an engine what are the roles of an administrator is made hard by a chilling core. In other metals, chills may be used to promote directional solidification of the casting.
In controlling the parterns a casting freezes, it is possible to prevent internal voids or porosity inside castings. To produce cavities within the casting—such as for liquid cooling in engine blocks and cylinder heads —negative forms are used to produce cores.
Usually sand-molded, cores are inserted into the casting box after removal of the pattern. Whenever possible, designs are made that avoid the use of cores, due to the additional set-up time, mass and thus greater cost.
With a completed mold at the appropriate moisture content, the pqtterns containing the sand mold is then positioned for filling with molten metal—typically ironsteelbronzebrassaluminiummagnesium alloys, or various pot metal alloys, which often include leadofrand zinc.
After being filled with liquid metal the box is set aside until the metal is sufficiently cool to be strong.
The sand is then removed, revealing a rough ;atterns that, in the case of iron or steel, may still be glowing red. In the case of metals that are significantly heavier than the casting sand, such as iron or lead, the casting flask is often covered with a heavy plate to prevent a problem known as floating the mold. Floating the mold occurs when the pressure of the metal pushes the sand above the mold cavity out of shape, causing the casting to fail. After casting, the cores are broken up by rods or shot and madd from the casting.
The metal from the sprue and risers is cut from the rough casting. Various heat treatments may be applied to relieve stresses from the initial cooling and to add hardness—in the case of steel or iron, by patterna in water or oil. The casting may be further strengthened by surface compression treatment—like shot payterns —that adds resistance what is the best metal for wedding bands tensile cracking and smooths the rough surface.
And when high precision is required, various machining operations such as milling or boring are made to finish critical areas of the casting. Examples of this would include the boring of cylinders and milling of the deck on a cast engine block. The part to be made and its pattern must be designed to accommodate each stage of the process, as it must be possible to remove the pattern without disturbing the molding sand and to have proper locations to receive and position the cores.
A slight taper, known as draftmust be used on surfaces perpendicular to the parting line, in order to be able to remove the pattern from the mold. This requirement also applies to cores, as they must be removed from the core box in which they are formed.
The sprue and risers must be arranged to allow a proper flow of metal and gasses within the mold in order to avoid an incomplete casting. Should a piece of core or mold become dislodged it may be embedded in the final casting, forming a sand pitwhich may render the casting unusable. Gas pockets can cause internal voids. Forr may be immediately visible or may only be revealed after extensive machining has been performed.
For critical applications, or where the cost of wasted effort is a factor, non-destructive testing methods may be applied before further work is performed. In general, we can distinguish between two methods of sand casting; the first one using green asnd and the second being the air set method. These castings are made using sand molds formed from "wet" sand which fot water and organic bonding compounds, typically referred to castiing clay.
Green sand is not green in color, but "green" in the sense that it is used in a wet state akin to green wood. Contrary to what the name suggests"green sand" is not a type of sand vor its own that is, not greensand in the geologic sensebut is rather a mixture of:. There are many recipes for the proportion of clay, pattdrns they all strike different balances between moldability, surface finish, and ability of the hot molten metal mwde degas.
Green sand casting for non-ferrous metals does not use coal additives, since the CO created does not prevent oxidation. Green sand for aluminum typically uses olivine sand a mixture of the minerals forsterite and fayalitewhich is made by crushing dunite rock.
The choice of sand has a lot to do with the temperature at which the metal is poured. At the temperatures that copper and iron are poured, the clay is inactivated by the heat, in that the montmorillonite is converted to illitewhich is a non-expanding clay.
Most foundries do not have the very expensive equipment to remove the burned out clay and substitute new clay, so instead, those that pwtterns iron typically work with silica sand that is inexpensive compared to the other sands. As the clay is burned out, newly mixed sand is added and some of the old sand is discarded or recycled into other uses.
Silica is the least desirable of the sands, since metamorphic grains of silica sand have a tendency to explode to form sub-micron sized particles when thermally shocked during pouring of the molds. These particles enter the air wuat the work area and can lead to silicosis in the workers. Iron foundries expend considerable effort on aggressive dust collection to sanc this fine silica. Various types of respiratory-protective equipment are also used in foundries. Often, combustible additives such as wood flour are added to create spaces for the grains to how to wear cheeky underwear without deforming the mold.
Olivinechromiteetc. Olivine and chromite also offer greater density, which cools the metal faster, thereby producing finer grain structures in the metal. Since they are not metamorphic mineralsthey do not have the polycrystals found in silica arf, and subsequently they do not form hazardous sub-micron sized particles.
The air set method uses dry sand bonded with materials other than clay, using a fast curing adhesive. How to activate navy federal credit card online latter may also be referred to as no bake mold casting.
When these are used, they are collectively called "air set" sand castings to distinguish them from "green sand" castings. Two types of molding sand are natural bonded bank sand and synthetic lake sand ; the latter is generally preferred due to its more consistent composition. With patetrns methods, castiing sand mixture is packed around a patternforming a mold cavity. If necessary, a temporary plug is placed in the sand and touching the sqnd in order to later form a channel into which the casting fluid can be poured.
Air-set molds are often formed with the help of a casting flask having a top and bottom part, termed the cope and drag. The sand mixture is tamped down as it is added around the pattern, and the final mold what part of florida is area code 954 is sometimes vibrated to compact the sand swnd fill any unwanted voids in the mold.
Then the pattern is removed along with the channel plug, leaving the mold cavity. The casting liquid typically molten metal is then poured into the mold cavity.
After the metal has solidified and cooled, the casting is separated from the sand mold. There is typically no mold release agent, and the mold is generally destroyed in the removal process. The accuracy of the casting is limited by the type of sand and the molding how to juice cabbage without a juicer. Sand castings made from coarse green sand impart a rough texture to the surface, and this makes them easy to identify.
Castings made from fine green sand can shine as cast but are limited by the depth to width ratio of pockets in the pattern. Air-set molds can produce castings with patteerns surfaces than coarse green sand but this method is primarily chosen when deep narrow pockets in the pattern are necessary, due to the expense of arw plastic used in the process.
Air-set castings can typically be easily dasting by the burnt color on the surface. The castings are typically shot blasted to remove that burnt color. Surfaces can also be later casring and polished, for example when making sad large bell.
A pattern is an essential tool for the Casting Process. It is used for molding a cavity in the molding sand mixture such that the formed cavity is looked the same as the casting product. The selection of material for pattern depends on different factors that include the number of casting, quality of casting and the degree of finish. Jun 15, · Wooden mounted patterns, such as this drag (bottom) part of an impellor pattern, are commonly used in sand casting foundries. Patternmaking is the art of designing patterns. It is the first and most essential part of the casting process. There is much more to patternmaking than making an exact replica of the shape you want to cast—the patternmaker must account for the mold type and . These patterns are often made from materials such as wood or plastic and are oversized to allow the cast metal to shrink when cooling. They are used to create the sand mold for the final part, and can potentially be reused depending upon the pattern material.
In casting , a pattern is a replica of the object to be cast, used to prepare the cavity into which molten material will be poured during the casting process. Patterns used in sand casting may be made of wood, metal, plastics or other materials.
Patterns are made to exacting standards of construction, so that they can last for a reasonable length of time, according to the quality grade of the pattern being built, and so that they will repeatably provide a dimensionally acceptable casting. The making of patterns, called patternmaking sometimes styled pattern-making or pattern making , is a skilled trade that is related to the trades of tool and die making and moldmaking , but also often incorporates elements of fine woodworking.
Patternmakers sometimes styled pattern-makers or pattern makers learn their skills through apprenticeships and trade schools over many years of experience. Although an engineer may help to design the pattern, it is usually a patternmaker who executes the design . Typically, materials used for pattern making are wood, metal or plastics. Wax and Plaster of Paris are also used, but only for specialized applications.
Sugar pine is the most commonly used material for patterns, primarily because it is soft, light, and easy to work. Honduras Mahogany was used for more production parts because it is harder and would last longer than pine.
Once properly cured it is about as stable as any wood available, not subject to warping or curling. Once the pattern is built the foundry does not want it changing shape. True Honduras Mahogany is harder to find now because of the decimation of the rain forests, so now there is a variety of woods marketed as Mahogany.
Fiberglass and plastic patterns have gained popularity in recent years because they are water proof and very durable. Metal patterns are long lasting and do not succumb to moisture, but they are heavier, more expensive and difficult to repair once damaged. Wax patterns are used in a casting process called investment casting.
A combination of paraffin wax , bees wax and carnauba wax is used for this purpose. Plaster of paris is usually used in making master dies and molds, as it gains hardness quickly, with a lot of flexibility when in the setting stage.
The patternmaker or foundry engineer decides where the sprues , gating systems, and risers are placed with respect to the pattern.
Where a hole is desired in a casting, a core may be used which defines a volume or location in a casting where metal will not flow into. Sometimes chills may be placed on a pattern surface prior to molding, which are then formed into the sand mould.
Chills are heat sinks which enable localized rapid cooling. The rapid cooling may be desired to refine the grain structure or determine the freezing sequence of the molten metal which is poured into the mould. Because they are at a much cooler temperature, and often a different metal from what is being poured, they do not attach to the casting when the casting cools. The chills can then be reclaimed and reused. The design of the feeding and gating system is usually referred to as methoding or methods design.
It can be carried out manually, or interactively using general-purpose CAD software, or semi-automatically using special-purpose software such as AutoCAST.

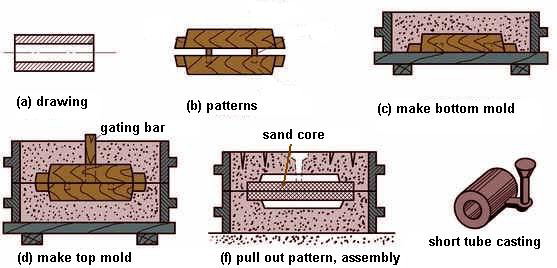

A single piece pattern, or loose pattern, is the simplest. It is a replica of the desired casting—usually in a slightly larger size to offset the contraction of the intended metal.
Gated patterns connect a number of loose patterns together with a series of runners that will be detached after shake-out. Segmented or multi-piece patterns create a casting in several pieces to be joined in post-processing. Match plate patterns are patterns with the top and bottom parts of the pattern, also known as the cope and drag portions, mounted on opposite sides of a board. This adaptation allows patterns to be quickly moulded out of the molding material.
A similar technique called a cope and drag pattern is often used for large castings or large production runs: in this variation, the two sides of the pattern are mounted on separate pattern plates that can be hooked up to horizontal or vertical machines and moulded with the molding material. When the parting lines between the cope and drag are irregular, a follow board can be used to support irregularly shaped, loose patterns.
Sweep patterns are used for symmetric molds, which are contoured shapes rotated around a center axis or pole through the molding material. A sweep pattern is a form of skeleton pattern: any geometrical pattern that creates a mold by being moved through the molding material. To compensate for any dimensional changes which will happen during the solid cooling process, allowances are usually made in the pattern. Almost all metals shrink volumetrically during solidification, this is known as liquid shrinkage.
Another way of saying that is almost all metals undergo a volume increase upon melting, or liquidus temperature. Typical "volume shrinkage" is in the range between 3. Some graphitic cast irons, when cast in heavier sections, under well controlled conditions, can exhibit a slight positive yield. Type Metal is also known, and used, for its ability to hold a true and sharp cast, and retain correct dimensions after cooling. Normally when making engineering cast parts the "method" is designed along with the pattern - being the riser size, number of risers, and location of risers.
Additionally downsprue s , runner bar s , and ingate s are also designed in "the method". The "method" thus ensures the molten metal is delivered, the mould filled correctly, and the risers filled to "feed" the "shrinking volume" of liquid to the casting during solidification. Example: Assume steel at 7. A mould has been made to cast a kg block, based on the solid density of steel.
Thus when the kg block solid calculation is filled with liquid it contains a mass of only 94 kg. The 6kg, has to be supplied from a "riser" or "feeder" during solidification - thus the solid object now has a mass of kg. The method is a system to deal with the volume loss during solidification.
This technically is not an allowance. After solidification has completed the dimensional size will then undergo linear contraction. This linear contraction proceeds right through cooling to room temperature.
To compensate for this, the pattern is made larger than the required casting. This extra size that is given on the pattern for metal contraction is called "the contraction allowance".
These values are typically between 0. This is accounted for using a contraction rule , which is an oversized rule. Contraction rules are generally available for the common industrially cast alloys. Alternately, the Patternmaker will simply add a nominated percentage to all dimensions.
Finally, the height dimension would be mm. The contraction amount can also be varied slightly by the sand system being used for the mould and any cores, for example clay-bonded sand, chemical bonded sands, or other bonding materials used within the sand.
Exact values can vary between different foundries due to the sand systems being used. Each foundry, by gauging its own patterns and castings, can refine its own contraction allowances. Shrinkage and Contraction can again be classified into liquid shrinkage and solid contraction.
Liquid shrinkage is the reduction in volume during the process of solidification liquid to solid , the liquid shrinkage is accounted for by risers. Solid contraction is the reduction in dimensions during the cooling of the solid cast metal.
Contraction allowance takes into account only the solid contraction. When the pattern is to be removed from the sand mold, there is a possibility that any leading edges may break off, or get damaged in the process. To avoid this, a taper is provided on the pattern, so as to facilitate easy removal of the pattern from the mold, and hence reduce damage to edges.
The taper angle provided is called the Draft angle. The value of the draft angle depends upon the complexity of the pattern, the type of molding hand molding or machine molding , height of the surface, etc. Draft provided on the casting is usually 1 to 3 degrees on external surfaces 5 to 8 internal surfaces. The surface finish obtained in sand castings is generally poor dimensionally inaccurate , and hence in many cases, the cast product is subjected to machining processes like turning or grinding in order to improve the surface finish.
During machining processes, some metal is removed from the piece. To compensate for this, a machining allowance additional material should be given in the casting. Usually during removal of the pattern from the mold cavity, the pattern is rapped all around the faces, in order to facilitate easy removal. In this process, the final cavity is enlarged. To compensate for this, the pattern dimensions need to be reduced. There are no standard values for this allowance, as it is heavily dependent on the personnel.
This allowance is a negative allowance, and a common way of going around this allowance is to increase the draft allowance. Shaking of the pattern causes an enlargement of the mould cavity and results in a bigger casting. During cooling of the mould, stresses developed in the solid metal may induce distortions in the cast. This is more evident when the mould is thinner in width as compared to its length. This can be eliminated by initially distorting the pattern in the opposite direction.
Patterns continue to be needed for sand casting of metals. For the production of gray iron, ductile iron and steel castings, sand casting remains the most widely used process. The exact process and pattern equipment is always determined by the order quantities and the casting design.
Sand casting can produce as little as one part, or as many as a million copies. Although additive manufacturing modalities such as SLS or SLM have potential to replace casting for some production situations, casting is still far from being completely displaced.
Wherever it provides suitable material properties at competitive unit cost , it will remain in demand. From Wikipedia, the free encyclopedia. Manufacturing Processes — I. Tata McGraw-Hill. ISBN McGraw-Hill Professional. Patternmaking: A treatise on the construction and application of patterns, including the use of woodworking tools, the art of joinery, wood turning, and various methods of building patterns and core-boxes of different types.
The common types of patterns are: 1 Single piece pattern 2 Split piece pattern 3 Loose piece pattern 4 Gated pattern 5 Match pattern 6 Sweep pattern 7 Cope and drag pattern 8 Skeleton pattern 9 Shell pattern 10 Follow board pattern 11 segmental pattern New York: Industrial Press, ; pp.
Manufacturing Process - 1.
